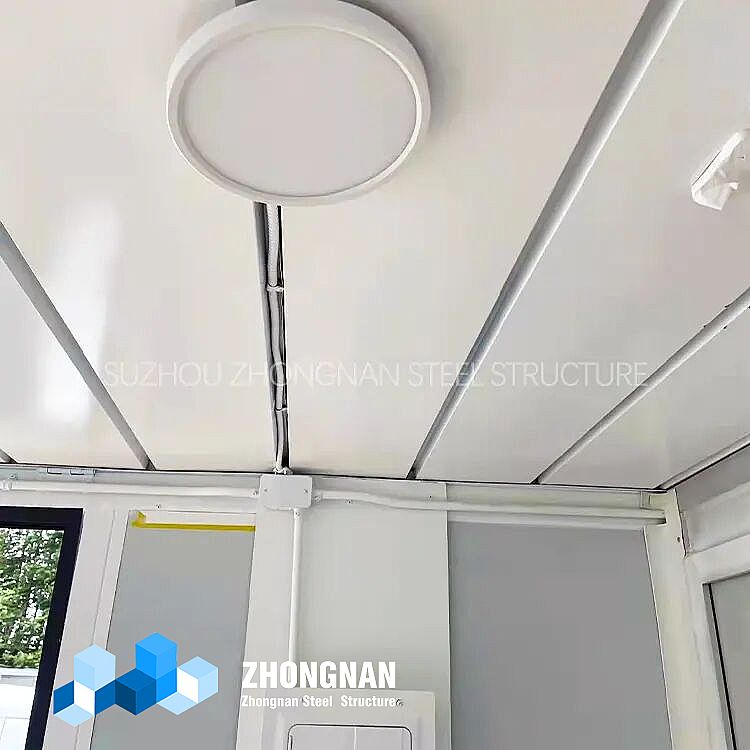

This is a folding container house customized by Suzhou Zhongnan Steel Structure Co., Ltd. according to the needs of customers. The biggest difference between this container house and other folding container houses is that it has two doors with large glass areas. In this way, the customer's demand for lighting can be met to a large extent. When installing, we need to install the box first, and then install the glass door separately. The wires and lamps are preset in advance. After installation, you can get a folding container house with an atmospheric appearance, complete circuits, and good lighting.
REF: 1581
Delivery Details
Folding container house is simple and easy to install.Regular exported folding container house size is 2450(W)X5800(L)X2500(H)mm.
It is prefered to galvanized steel,manufactured by advanced equipment, abandon the defects caused by traditional technology.
Use 50mm rock wool sandwich panel for wall panel and glass wool for roof panels to make sure good insulation and sound protection.
Modern appearance, optional colors for the walls panel and roof.
 |
 |
 |
 |
|||
| 1B | 2C | 3C | 4A |
| Folding container house | ||
| Material | specification | Raw material |
| Roof steel panel | 0.32×1000mm | Color steel sheet |
| Wall panel | 0.32×50×950mm | Rock wool sandwich panel |
| Bottom beams | 2.3×60×6000mm | Steel beams |
| Square tube | 40×80×1.8mm | Floor square tube |
| Floor | 15×1180×2660mm | MGO board |
| Waterproof folded parts | 1.5×65×80mm | Steel |
| Side wall folded parts | 1.5×65×80mm | PVC |
| Roof beams | 2.7×130×50mm | Steel |
| Waterproof sealing | 40×30mm | Slot seal |
| Door | 50×790×2000 | Steel door |
| Window | 50×925×1200 | Aluminum alloy sliding window |
| Hinge | 14×3 | Steel hinge |
